Gladiator NXT EVO Omni Throttle (Open Box)

This is an Open Box item

It means that the item has been opened and returned to us during two weeks cooldown period. This item is not returned because of noticed malfunctioning.

Nevertheless, we carefully check the content and fully test the item. During the testing the configuration is reset, the axes are calibrated, and all axis and buttons are checked to make sure there is no hidden issues.

The item is fully complete but some packaging might be slightly damaged or scratched.

Two years warranty and rights to return during the cooldown period of two weeks are applied



---

Important:

If purchased for non-EU destination (e.g. UK, CH, NO), we do not charge  VAT but please consider to pay import tax according to your country regulations.

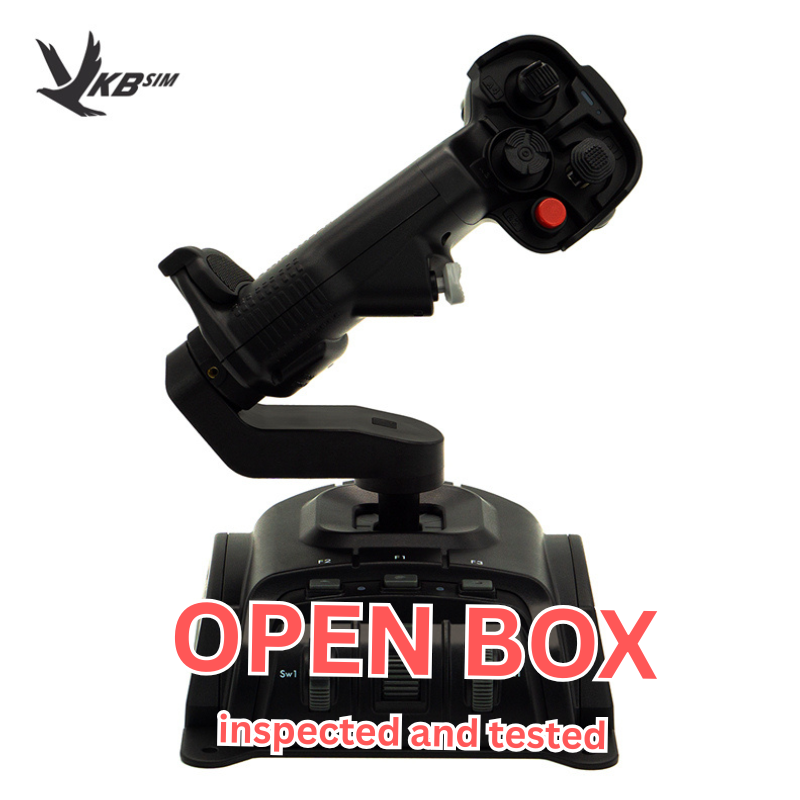

Gladiator NXT EVO Omni Throttle

VKB’s GNX Omnidirectional Throttle is based on the Gladiator NXT EVO series of joysticks. It ships with a Gladiator EVO base, choice of SCG Premium Left or Right Grip, and a preinstalled Omni Throttle Adapter (OTA). Gladiator EVO is compatible and retro-compatible across the whole GNX lineup (note: some controls might be physically blocked by a grip with Omni Throttle Adapter e.g. SEM mounted to EVO from the left side of OTA Left, or right side of EVO if OTA Right is installed).

Looking for a desk mount?  Gladiator NXT EVO is compatible with ‘Cadet’ UCM Combo Mounts, and ‘UCM-S GL’ UCM Stand-Alone Mounts.

GNX EVO Omni Throttle – Left

• Complete Gladiator NXT EVO Omni Throttle with SCG Premium Grip (Left)

Includes

• 1 Gladiator NXT EVO Base
• 1 SCG Premium Left w/ preinstalled Omni Throttle Adapter (OTA)

–OR–

GNX EVO Omni Throttle – Right

• Complete Gladiator NXT EVO Omni Throttle with SCG Premium Grip (Right)

Includes

• 1 Gladiator NXT EVO Base
• 1 SCG Premium Right Grip w/ preinstalled Omni Throttle Adapter (OTA)

---

GNX SCG Premium Grip (Left/Right)

• Compact grip design – Perfect for tabletop joysticks
• Lockable Twist (Z-axis) with contactless MaRS sensor
• 1 Dual Action Trigger
• 1 Rapid Fire Trigger
• 3 Hat switches with center push (4-way)
• 3 buttons
• 1 analog mini stick with center push (8-way)
• Programmable red color LED
• 2 interchangeable palm rests (total 3 palm-size adjustments)
• Programmable RGB LED
• Extra button module for C1 position
• Extra hat switch module for A1 position
• Trigger cover

GNX EVO Base

• 2 Contactless MaRS sensors on X and Y axes
• 1 Auto-centering 3-position switch
• 1 Throttle wheel
• 1 Rotary encoder
• 3 buttons
• Gimbal with ball bearings
• Adjustable dry clutches for user-tunable load
• 2 Programmable single-color LEDs
• Tabletop base steel plate
• Operating manual
• Set of soft springs
• Set of strong springs
• Spring extractor tool
• Set of screws
• Screwdriver
• USB cable (180cm/70inch)
• Cable holder tool

General Specifications

• Base & Grip made from industrial grade ABS
• Gimbal made from glass-fiber-reinforced PA
• Tabletop base plate made from steel
• 32-bit ARM Controllers inside base and grip
• ALPS buttons (Japan OEM) for extended longevity
• Contactless MaRS sensors with High Resolution
• Plug & Play with Driver-Free Installation (Recommended for Most Users)
• Firmware Upgrade via USB
• Onboard Memory for Storing Profiles
• Optional Programming Software Available (For Advanced Users)

---

Warranty

• 2 Years

Instructions

• VKB Official YouTube Channel

Templates:

• SCG Grip Button Mapping Template (right)
• SCG Grip Button Mapping Template (left)

Downloads

• Please visit the Downloads section for configuration software, device firmware, as well as software documentation.
