Gladiator NXT (Open Box)

Please be aware that NXT series is completely replaced by EVO product line

It is the last items but normal 2 years warranty is provided by VKB FSC Europe

This is an Open Box item

It means that the item has been opened and returned to us during two weeks cooldown period. This item was not returned because of noticed malfunctioning.

Nevertheless, we carefully check the content and fully test the item. During the testing the configuration is reset, the axes are calibrated, and all axis and buttons are checked to make sure there is no hidden issues.

The item is fully complete but some packaging might be slightly damaged or scratched.

This is the perfect entry level joystick to get used to VKB products. It uses the same configuration tool as the other VKB products. Also, it is supported so new firmware for these controllers are available. However, we do not recommend to re-flash it immediately after unpacking. We have done it already during the preparation. Only flash the new firmware if you have a good reason for that.

Gladiator NXT is compatible with the all SCG and KG grips compatible with EVO base. Also the grip can be used on EVO or Gunfighter base (if proper twist module is used to fit Gunfighter socket)

The gimbal can be upgraded  up to EVO level

https://flightsimcontrols.com/product/gladiator-nxt-to-evo-upgrade-kit/

Omni Throttle Adapter is compatible (it works better with EVO gimbal  though)

https://flightsimcontrols.com/product/omni-throttle-adapter-for-gladiator-nxt/

In terms of controls available for NXT vs EVO there is an important difference. NXT base  has two rotary encoders. EVO base has one rotary encoder replaced with two-way spring-loaded switch (up/down) with the central neutral position. All other controls on the base are identical.

Also, NXT base can be mounted on UCM-S for Gladiator if needed.

---

Important:

If purchased for non-EU destination (e.g. UK, CH, NO), we do not charge  VAT but please consider to pay import tax according to your country regulations.

Gladiator NXT (GNX)

The Gladiator NXT  – or GNX for short – is the basis of a modular VKB flight control system, with various modules for extended functionality currently in development.



GNX SCG Base:

• 2 Contactless MaRS sensors on X and Y axes
• 2 Rotary encoders
• 1 Throttle wheel
• 3 buttons
• 2 Programmable single color LEDs

Equipped with the following grips

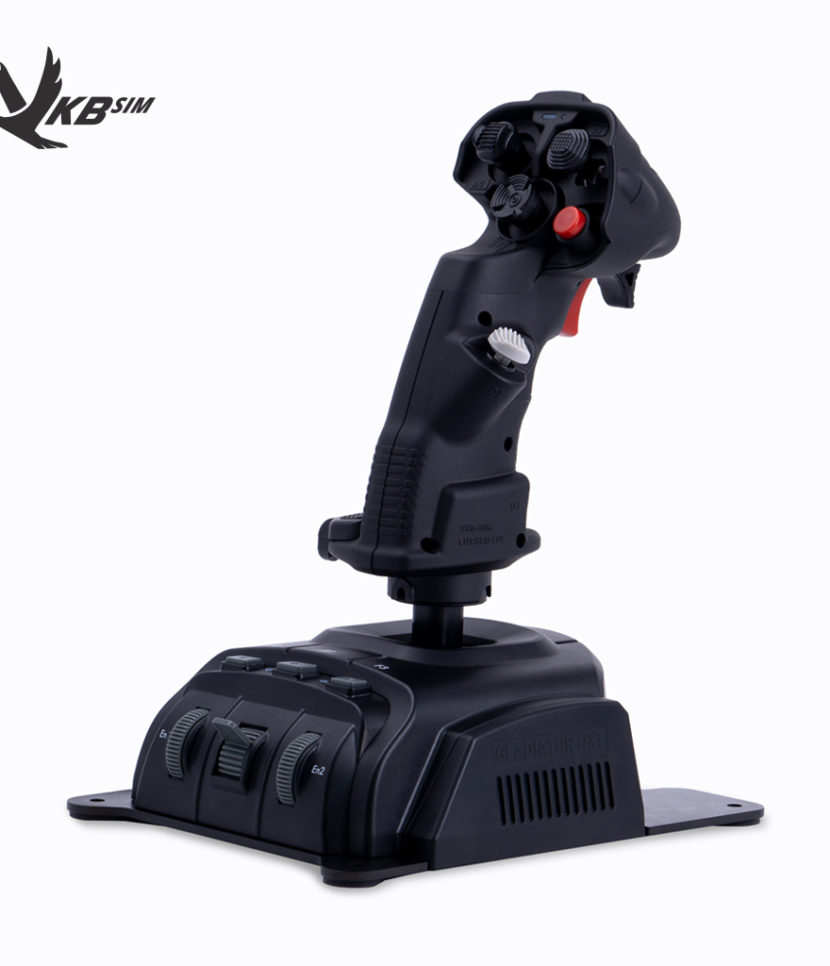

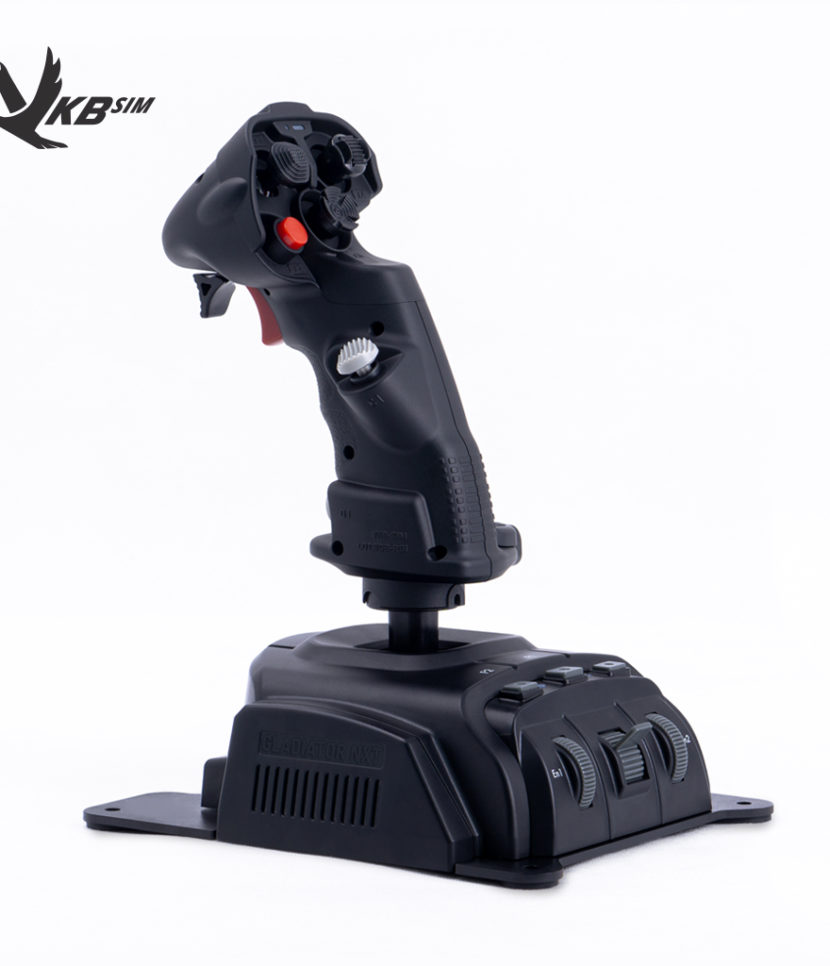

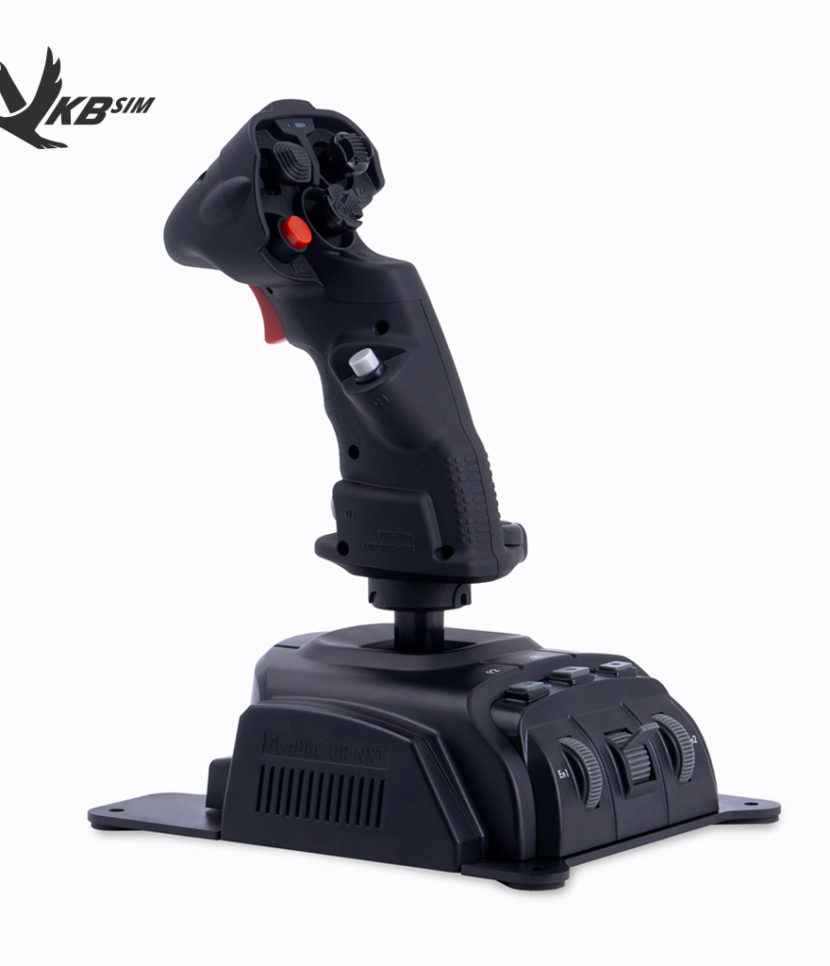

SCG Standard Grip:

• Left- or Right-hand versions
• Compact grip design – Perfect for tabletop joysticks
• Lockable Twist axis with contactless MaRS sensor
• Dual Action Trigger
• 3 Hat switches with center push (4-way)
• 4 Buttons
• Programmable red color LED
• Programmable RGB LED

Content:

• Grip with installed palm rest
• Palm rest for small hands
• Gladiator NXT base
• Tabletop base steel plate
• Operating manual
• Set of screws
• Screw driver
• Set of medium springs (pre-installed)
• Cable holder tool
• USB cable (180cm, 70inch)

–OR–

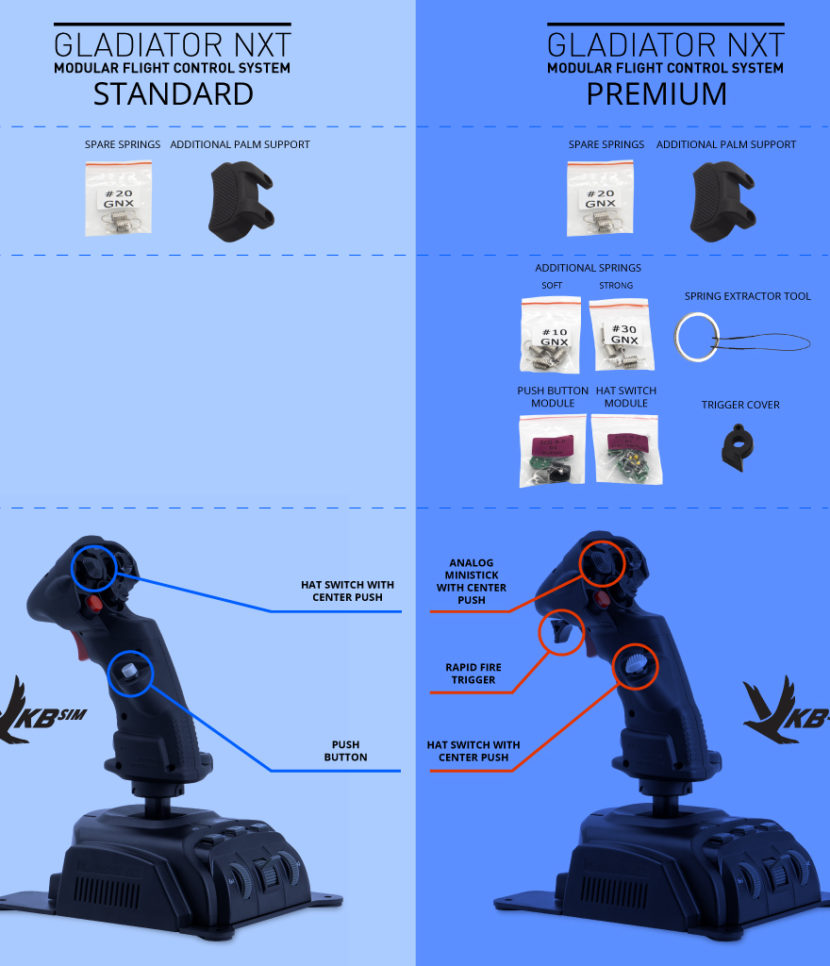

GNX SCG Premium

• Left- or Right-hand versions
• Compact grip design – Perfect for tabletop joysticks
• Lockable Twist axis with contactless MaRS sensor
• Dual Action Trigger
• Rapid Fire Trigger
• 3 Hat switches with center push (4-way)
• 3 buttons
• 1 analog ministick with center push (8-way)
• Programmable red color LED
• Programmable RGB LED

Content:

• Grip with installed palm rest
• Palm rest for small hands
• Extra button module for C1 position
• Extra hat switch module for A1 position
• Trigger cover
• Gladiator NXT base
• Tabletop base steel plate
• Operating manual
• Set of screws
• Screwdriver
• Set of strong springs
• Set of medium springs (pre-installed)
• Set of soft springs
• Spring extractor tool
• Cable holder tool
• USB cable (180cm, 70inch)

–OR–

GNX KG12 Grip

• 1 Folding trigger (metal)
• 1 Pinky lever (metal)
• 1 Bomb release button
• 1 8-way HAT switch
• 1 Side button
• Built-in contactless twist adapter

---

GNX specifications:

• All-purpose grip for flight and space simulations
• Compact grip design provides extra comfort with desktop joysticks
• Plenty of handily positioned buttons
• 2 interchangeable palm rests (a total of 3 palm size adjustments)
• Base and grip made from industrial grade ABS
• Gimbal made from glass fiber reinforced PA plastic
• Tabletop base plate made from steel
• 32-bit ARM Controllers inside base and grip
• ALPS buttons (Japan OEM) for extended longevity
• Contactless MaRS sensors with High Resolution
• Plug & Play with Driver-Free Installation (Recommended for Most Users)
• Firmware Upgrade via USB
• Onboard Memory for Storing Profiles
• Optional Programming Software Available (For Advanced Users)

Warranty:

• 2 Years

Compatible with:

• Gladiator NXT is compatible with UCM desk mount solutions,  with the base plate dimensions and hole pattern matching those of  the original Gladiator series.

Instructions:

• VKB Official YouTube Channel
• VKB Device Config User Guide

Downloads:

• Please visit the Downloads section to download the required firmware and tools needed to flash and calibrate.
