GNX Dual THQ + SEM-V Combo

This item is available for immediate shipping if it is marked as “in stock”

Important: This item is provided as a complete single product ready to use out of the box.

It can be disassembled into individual modules but in order to build a new configuration, extra components might be required such as cables, couplers etc. which are not supplied. All extra components should be purchases separately. If you need your own custom setup, please, consider to buy separate components

Description

Part of the modular GNX series of VKB controllers.

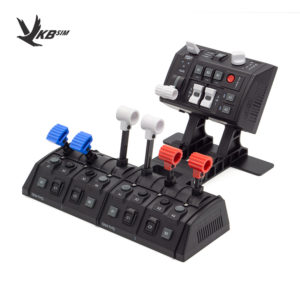

GNX Dual THQ + SEM-V Combo

Includes

• 2 GNX GNX THQ
• 1 GNX SEM-V
• 1 GNX MFH
• 1 GNX USB Controller (HID-Main)

Combo Features

•  6 Axes
• 40 programmable buttons
• 8 programmable bi-colors LEDs

GNX THQ (Throttle Quadrant)

• 3 Analog axes (w/ clutch dampers and adjustable length/height of axis levers)
• 8 Push buttons
• 5 Interchangeable axis lever heads (different colors/shape)
• Up to 4 GNX THQ modules can be connected, providing 12 analog axes
• Newly developed VKB Njoy 32NG firmware allows for 20 analog axes to be recognized in Windows as 3 joysticks (2 w/ 8 axes, plus 1 w/ 4 axes)

GNX SEM (Side Extension Module)

• 1 Rotary switch
• 2 Multi-function axes
• 2 K-switches w/ central push button
• 7 Push buttons
• 8 Programmable, dual color LEDs
• Provides either a total of 24 logical buttons, or 17 logical buttons and 2 analog axes (based on configuration)

GNX MFH (Multi Functional Holder)

• Designed to mount GNX extension modules (FSM, SEM-V, THQ-V)
• Attaches to either a single THQ or SEM module, or straddles two modules that have been connected together (does not attach to Gladiator NXT base)
• If not attached to any extension module, it can be used directly on the desk as stand-alone holder
• If not used for vertical GNX modules, it provides sturdy support for smartphones, tablets, or keyboards

GNX USB Controller (HID-Main)

• NJoy32 platform
• 32-bit ARM Controllers inside base and grip
• Plug & Play with Driver-Free Installation (Recommended for Most Users)
• Firmware Upgrade via USB
• Onboard Memory for Storing Profiles
• Optional Programming Software Available (For Advanced Users)
• USB 2.0 HID controller
• Type-C connection

Warranty:

• 2 Years

Compatible with:

• Gladiator NXT

Instructions:

• VKB Official YouTube Channel

Downloads:

• • • Please visit the Downloads section for configuration software, device firmware, as well as software documentation.
